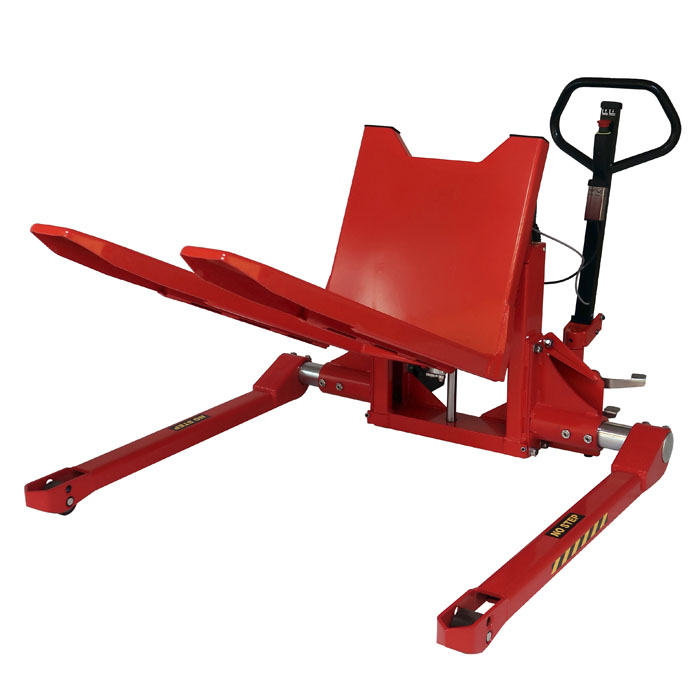

Electric Straddle Pallet Tilter with Adjustable Legs – LT1001TES

Electric Straddle Pallet Tilter with Adjustable Legs Technical Specifications: Models (LT1001TES/-) 560×800 680×800 560×1150 680×1150 Capacity 1000 kg 750 kg Load Centre c1 max. l/2 Height, Tilted ht 750 – 950 mm Lifting Height h3 275 mm Fork Length l 800 mm 1150 mm Overall Height with Handle h14 1055 mm Overall Height h1 680 mm Overall Width b1 — Width between Legs b4 Adjustable 1125 – 1305 mm Width over Forks b5 560 mm 680 mm 560 mm 680 mm Individual Fork Width e 163 mm Overall Length by 800 mm Forks l1 1425 mm — Length without Forks l2 590 mm Overall Height of Forks at Max. Tilt h4 ht l Lowered Height h13 85 mm Pump Motor 0.8 kW 12V Lifting Speed – Lift/Tilt 4 s / 14 s Lowering Speed – Lift/Tilt 3 s / 11 s Battery 12V / 70Ah Weight by 800 mm Forks (without battery) 251 kg — Features: Suitable for the food and pharmaceutical industries where hygiene is of great importance Ergonomically designed handle Adjustable working height when tilted The handle can be turned to the side and locked to allow the user easy access to the crate/box contents Tilting function operated by remote control Tilting angle can be adjusted during filling and emptying operation The tilting degree can be set so that the tilter stops automatically at the same angle each time Designed with foot protectors and parking brake Safety valve and emergency stop ensures safe operation
