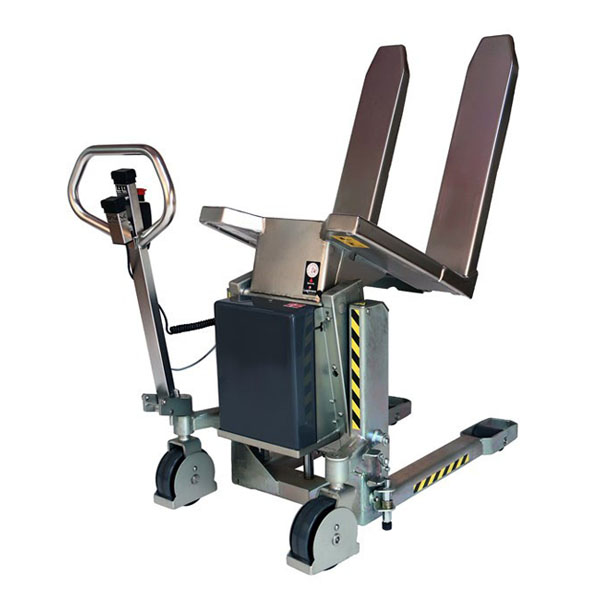

Stainless Steel Pallet Tilter Technical Specifications: Capacity 1000 kg (*) Load Centre c1 max. l/2 Load Centre c2 min. 200 – max. 420 Height, Tilted ht 750 – 950 mm Lifting Height h3 275 mm Fork Length l 800 mm Overall Height with Handle h14 1090 mm Overall Height h1 680 mm Overall Width b1 780 mm Width over Forks b5 560 mm Individual Fork Width e 163 mm Overall Length by 800 mm Forks l1 1410 mm Length without Forks l2 590 mm Run-in Length lx 665 mm Overall Height of Forks at Max. Tilt h4 ht l Lowered Height h13 85 mm Pump Motor 0.8 kW 12V Lifting Speed – Lift/Tilt 4 s / 14 s Lowering Speed – Lift/Tilt 3 s / 11 s Battery 12V / 70Ah Weight by 800 mm Forks (with battery) 173 kg Features: Suitable for the food and pharmaceutical industries where hygiene is of great importance Ergonomically designed handle Adjustable working height when tilted The handle can be turned to the side and locked to allow the user easy access to the crate/box contents Tilting function operated by remote control Tilting angle can be adjusted during filling and emptying operation The tilting degree can be set so that the tilter stops automatically at the same angle each time Designed with foot protectors and parking brake Safety valve and emergency stop ensures safe operation AISI 316 stainless steel (*) 1000kg at 400mm load centre. With 1150mm forks: 750kg at 600mm load centre
