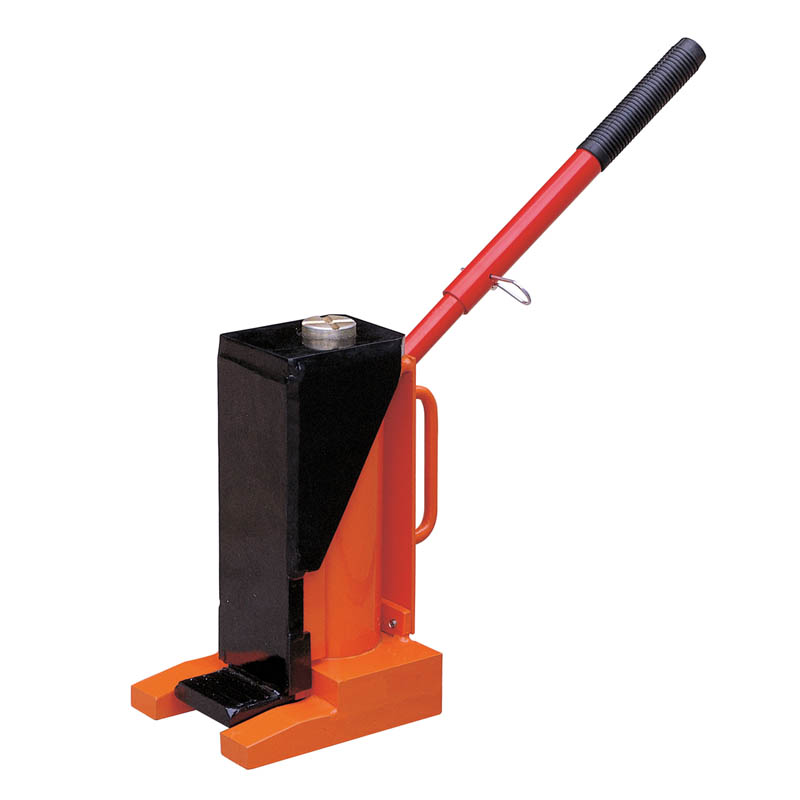

Machinery Toe Jack This hydraulic machinery toe jack has a fixed toe and is suitable for general lifting purposes. The toe jack has two lifting positions (toe & top) with capacities of 6 & 7.5t respectively. Designed for raising loads and placing shifting-skates underneath them Also used for general repairs, maintenance and for installation of heavy items Dual lifting capability: loads can be lifted using the toe or the head of the jack Adjustable lowering speed Removable pump handle Overload protection Technical Specifications: Capacity: 6000kg Lifting Capacity on Toe: 6000kg Lifting Capacity on Head: 7500kg Lift Height on Toe: 35 – 195 mm (single stage) Lift Height on Head: 320 – 560 mm Approx. Weight: 25.5kg
