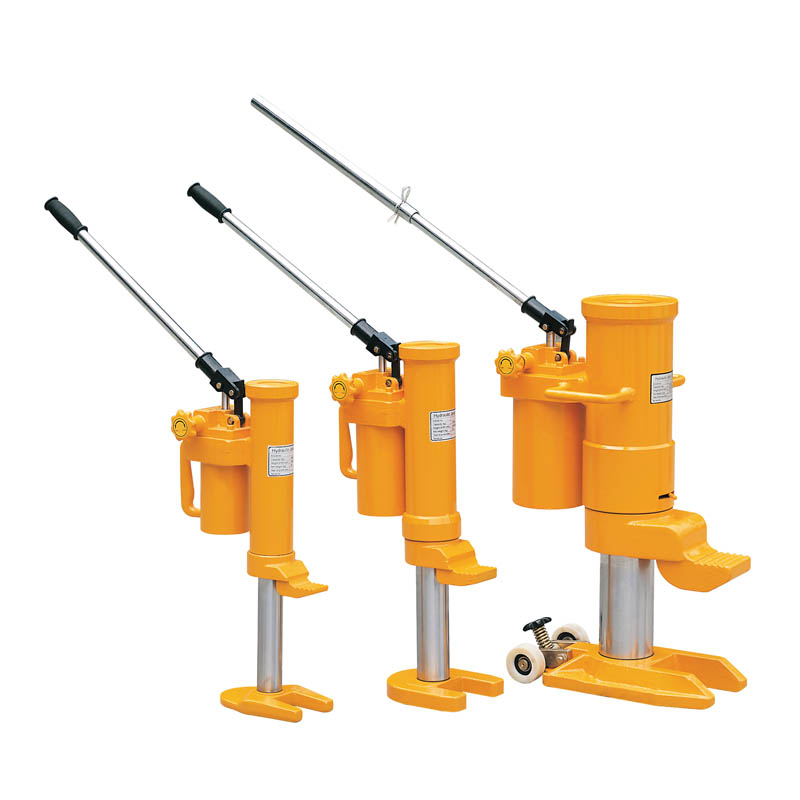

Rotational Hydraulic Toe Jack Designed for raising loads and placing shifting-skates underneath them Also used for general repairs, maintenance and for installation of heavy items Dual lifting capability: loads can be lifted using the toe or the head of the jack Compact and stable construction Can be used in any position (pumps sideways and upside down) Housing revolves 360 degrees Adjustable lowering speed Removable pump lever Overload protection valve Technical Specifications: Model HML50 HML100 HML250 Capacity 5000kg 10000kg 25000kg Lift Height on Toe 25 – 220 mm (single stage) 30 – 260 mm (single stage) 58 – 273 mm (single stage) Lift Height on Head 368 -573 mm 420 -650 mm 505 -720 mm Approx. Weight 25kg 35kg 102kg
