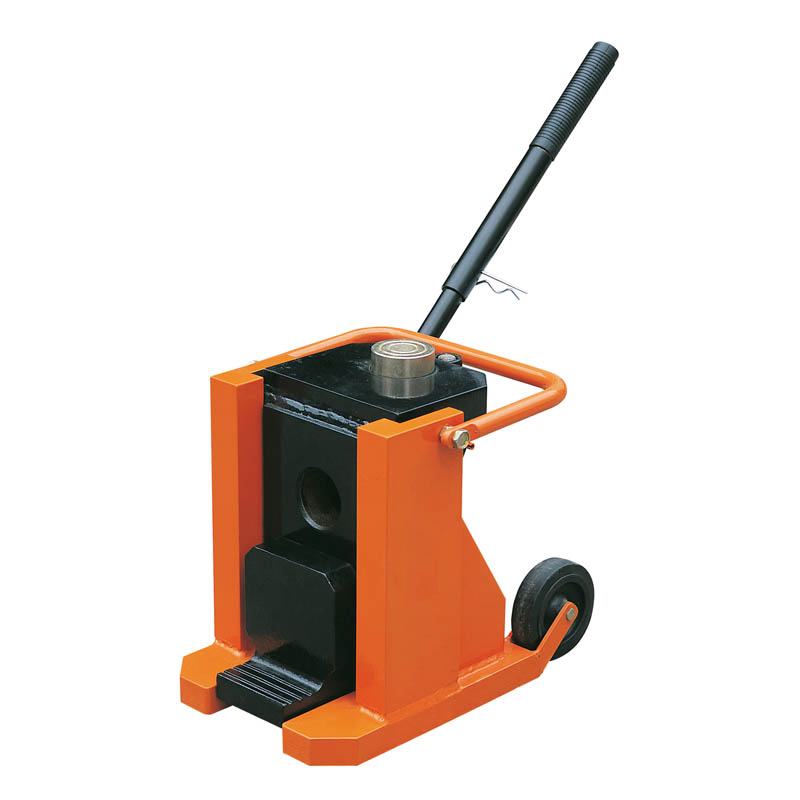

Machinery Toe Jack This hydraulic machinery toe jack has a fixed toe and is suitable for general lifting purposes. The toe jack has two lifting positions (toe & top) with capacities of 12 & 15t respectively. Designed for raising loads and placing shifting-skates underneath them Also used for general repairs, maintenance and for installation of heavy items Dual lifting capability: loads can be lifted using the toe or the head of the jack 2 toe positions and wheels for easy manoeuvring Adjustable lowering speed Removable pump handle Overload protection Technical Specifications: Capacity: 12000kg Lifting Capacity on Toe: 12000kg Lifting Capacity on Head: 15000kg Lift Height on Toe: 40 – 180 mm (two stage) Lift Height on Head: 325 – 545 mm Lifting Stroke: 140 mm Approx. Weight: 68kg
