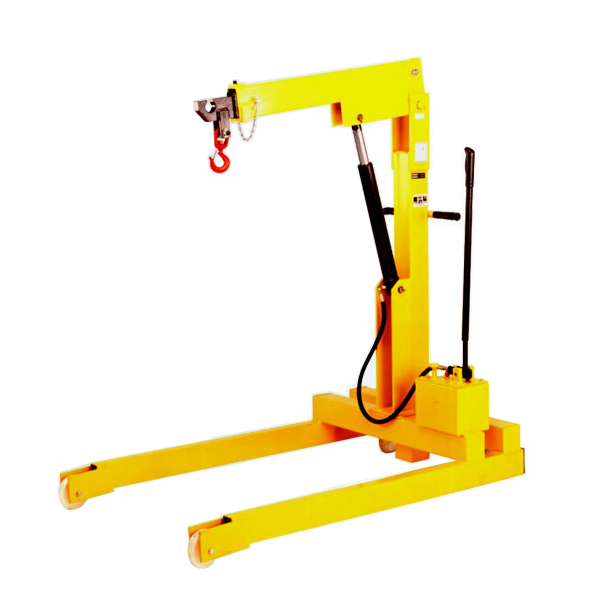

1000kg Workshop Crane – LiFC1000 Individually Tested to 125% of Maximum Capacity Heavy Duty Double Acting Pump For Fast Action Fitted With Overload Safety Valve Chrome Plated Piston on Both Ram & Pump 3 Position Extending Jib Swivel Hook With Safety Latch & Open Fixed hook Technical Specifications: Capacity 1000 kg Minimum Extension (1) 925 mm Capacity 750 kg Centre Extension (2) 1145 mm Capacity 500 kg Maximum Extension (3) 1330 mm Min. Height Hook to Ground (A) 525 mm Max. Height Hook to Ground (B) 2295 mm Column Height (C) 1690 mm Overall Base Length (D) 1555 mm Max. Width Between Legs (E) 780 mm Max. Overall Width (F) 950 mm Height to Top of Legs (G) 150 mm Diameter of Wheels 125 mm Weight 150 kg Not always in stock – lead time approx. 6 working weeks.
