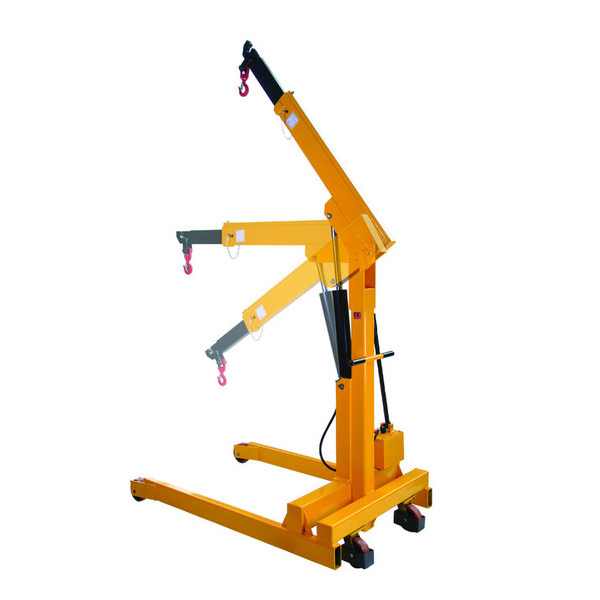

1500kg Workshop Crane – LiFC1500 Individually Tested to 125% of Maximum Capacity Heavy Duty Double Acting Pump For Fast Action Fitted With Overload Safety Valve Chrome Plated Piston on Both Ram & Pump 3 Position Extending Jib Swivel Hook With Safety Latch & Open Fixed hook Technical Specifications: Capacity 1500 kg Minimum Extension (1) 950 mm Capacity 1250 kg Centre Extension (2) 1090 mm Capacity 1000 kg Maximum Extension (3) 1240 mm Min. Height Hook to Ground (A) 700 mm Max. Height Hook to Ground (B) 2320 mm Column Height (C) 1680 mm Overall Base Length (D) 1560 mm Max. Width Between Legs (E) 770 mm Max. Overall Width (F) 940 mm Height to Top of Legs (G) 160 mm Diameter of Wheels 125 mm Weight 160 kg Not always in stock – lead time approx. 6 working weeks.
