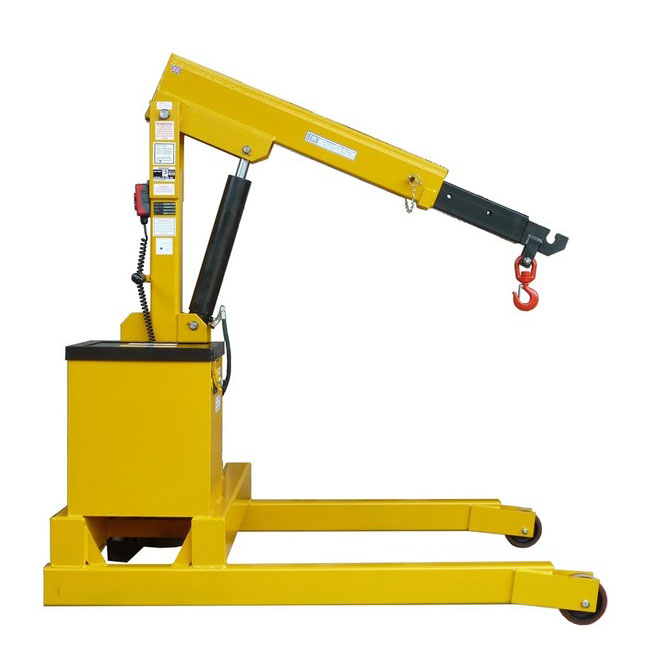

2000kg Workshop Crane – LiFC2000 Individually Tested to 125% of Maximum Capacity Heavy Duty Double Acting Pump For Fast Action Fitted With Overload Safety Valve Chrome Plated Piston on Both Ram & Pump 3 Position Extending Jib Swivel Hook With Safety Latch & Open Fixed hook Technical Specifications: Capacity 2000 kg Minimum Extension (1) 1220 mm Capacity 1750 kg Centre Extension (2) 1360 mm Capacity 1000 kg Maximum Extension (3) 1500 mm Min. Height Hook to Ground (A) 950 mm Max. Height Hook to Ground (B) 2855 mm Column Height (C) 1850 mm Overall Base Length (D) 1710 mm Max. Width Between Legs (E) 835 mm Max. Overall Width (F) 1040 mm Height to Top of Legs (G) 200 mm Diameter of Wheels 150 mm Weight 190 kg Not always in stock – lead time approx. 6 working weeks.
