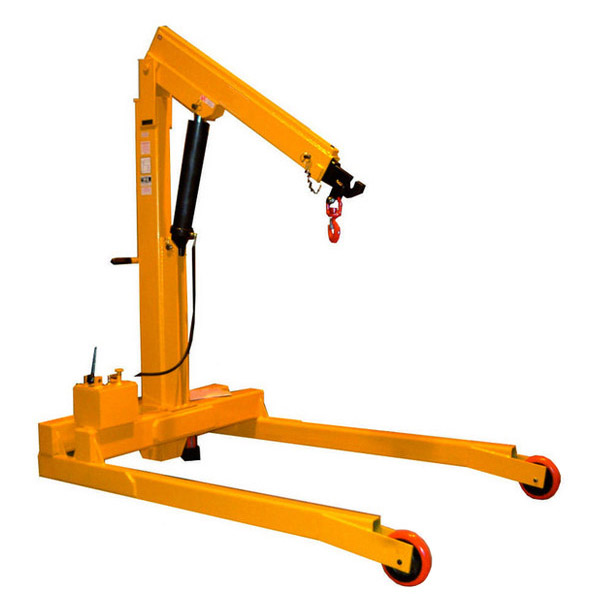

2500kg Workshop Crane – LiFC2500 Individually Tested to 125% of Maximum Capacity Heavy Duty Two Stage Pump: One Side Is Low Pressure For Fast Approach To Work Piece And The Other Is High Pressure for Heavy Loading Fitted With Overload Safety Valve Chrome Plated Piston on Both Ram & Pump 4 Position Extending Jib Swivel Hook With Safety Latch Technical Specifications: Capacity 2500 kg Minimum Extension (1) 1300 mm Capacity 2000 kg Centre Extension (2) 1490 mm Capacity 1750 kg Maximum Extension (3) 1700 mm Capacity 1250 kg Maximum Extension (4) 1900 mm Min. Height Hook to Ground (A) 680 mm Max. Height Hook to Ground (B) 2950 mm Column Height (C) 2230 mm Overall Base Length (D) 2070 mm Max. Width Between Legs (E) 1100 mm Max. Overall Width (F) 1310 mm Height to Top of Legs (G) 240 mm Diameter of Wheels 200 mm Weight 300 kg Not always in stock – lead time approx. 6 working weeks.
