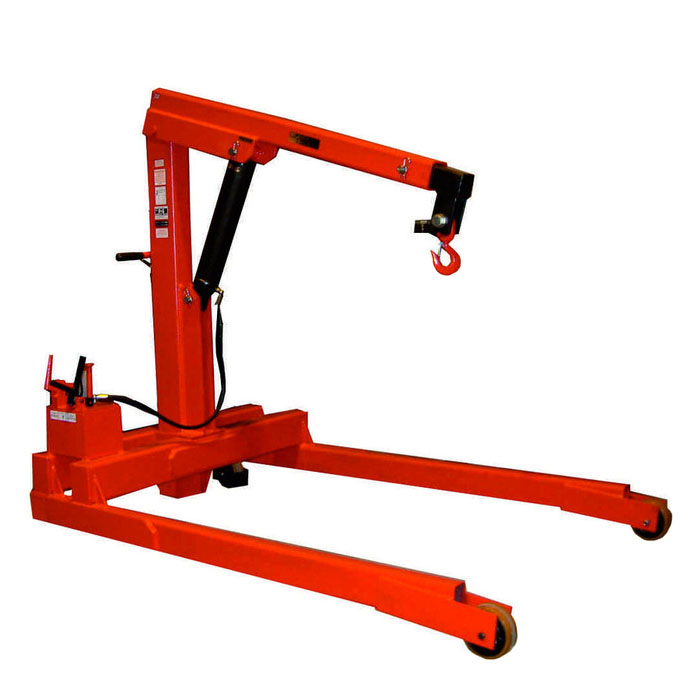

3000kg Workshop Crane – LiFC3000 Individually Tested to 125% of Maximum Capacity Heavy Duty Two Stage Pump: One Side Is Low Pressure For Fast Approach To Work Piece And The Other Is High Pressure for Heavy Loading Fitted With Overload Safety Valve Chrome Plated Piston on Both Ram & Pump 4 Position Extending Jib Swivel Hook With Safety Latch Technical Specifications: Capacity 3000 kg Minimum Extension (1) 1340 mm Capacity 2000 kg Centre Extension (2) 1520 mm Capacity 1500 kg Maximum Extension (3) 1700 mm Capacity 1000 kg Maximum Extension (4) 1840 mm Min. Height Hook to Ground (A) 930 mm Max. Height Hook to Ground (B) 2750 mm Column Height (C) 1750 mm Overall Base Length (D) 2080 mm Max. Width Between Legs (E) 1090 mm Max. Overall Width (F) 1280 mm Height to Top of Legs (G) 220 mm Diameter of Wheels 150 mm Weight 350 kg Not always in stock – lead time approx. 6 working weeks.
