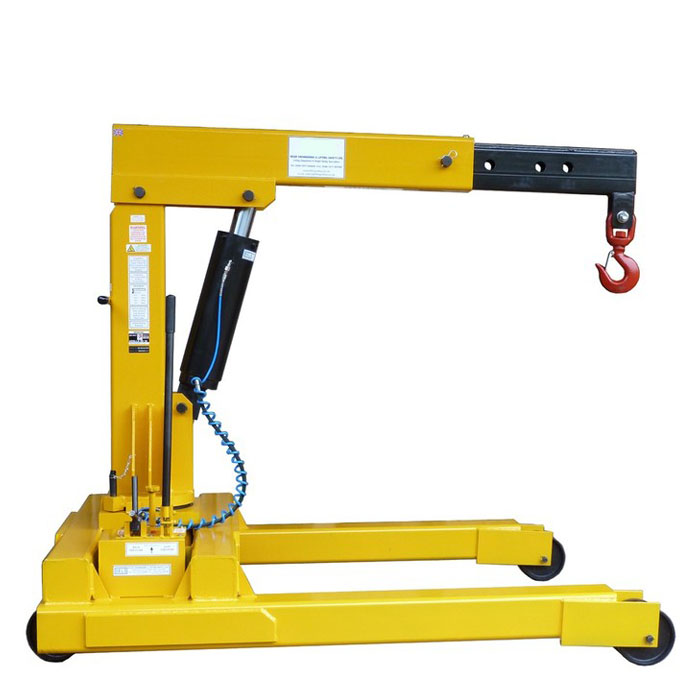

5000kg Workshop Crane – LiFC5000 Individually Tested to 125% of Maximum Capacity Heavy Duty Two Stage Pump: One Side Is Low Pressure For Fast Approach To Work Piece And The Other Is High Pressure for Heavy Loading Fitted With Overload Safety Valve Chrome Plated Piston on Both Ram & Pump 4 Position Extending Jib Swivel Hook With Safety Latch Technical Specifications: Capacity 5000 kg Minimum Extension (1) 1320 mm Capacity 4000 kg Centre Extension (2) 1460 mm Capacity 3500 kg Maximum Extension (3) 1650 mm Capacity 3000 kg Maximum Extension (4) 1810 mm Min. Height Hook to Ground (A) 1330 mm Max. Height Hook to Ground (B) 2860 mm Column Height (C) 1877 mm Overall Base Length (D) 2080 mm Max. Width Between Legs (E) 1070 mm Max. Overall Width (F) 1490 mm Height to Top of Legs (G) 265 mm Not always in stock – lead time approx. 6 working weeks.
