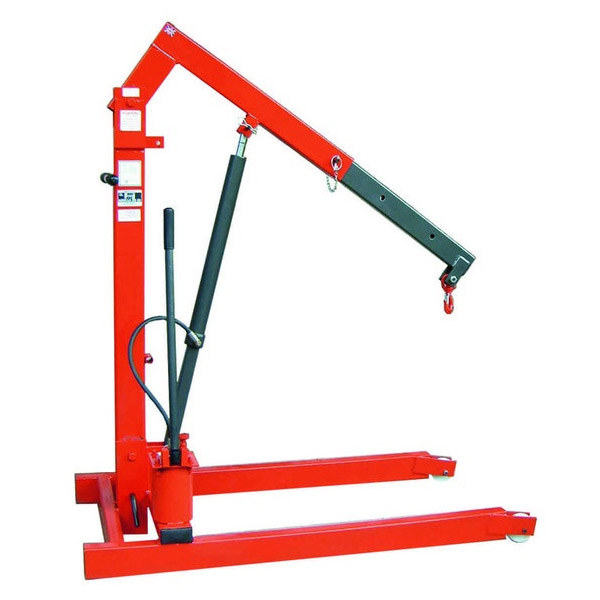

250kg Folding Workshop Crane – LiFC250 The 250kg folding workshop crane is a space saving fold-away crane ideal for use in factories and industrial workshops. The crane folds down into a flat, compact free standing unit to save space when not in use or for transportation. Robust construction Manufactured from hollow steel box section for combined strength and lightness Tested to 25% overload Heavy duty double acting pump for fast action Fitted with overload safety valve Chrome plated piston on both ram & pump 3 position extending jib Heavy duty swivel hook fitted with safety latch Fitted with a D/A pump and separate hydraulic ram for longer seal life Technical Specifications: Capacity Position 1 254 kg Capacity Position 2 178 kg Capacity Position 3 102 kg Min. Height Hook to Ground (1) 420 mm Max. Height Hook to Ground (2) 2415 mm Column Height (3) 1850 mm Overall Base Length (4) 1495 mm Max. Width Between Legs (5) 620 mm Max. Overall Width (6) 780 mm Height to Top of Legs (7) 125 mm Diameter of Wheels 100 mm Knock Down Height (8) 400 mm Weight 85 kg Not always in stock – lead time approx. 6 working weeks.
