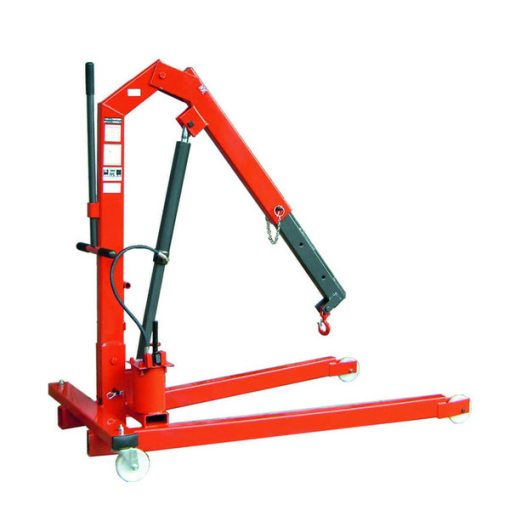

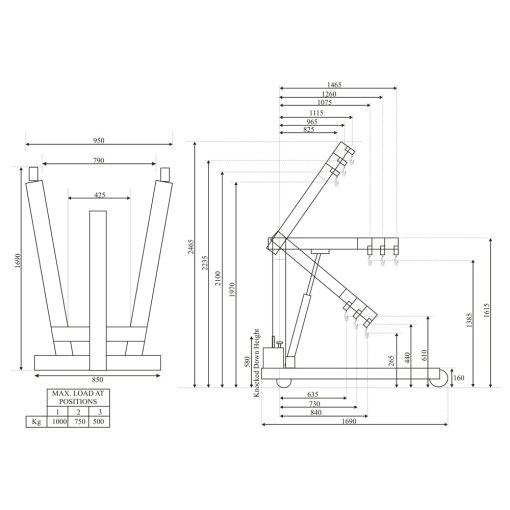

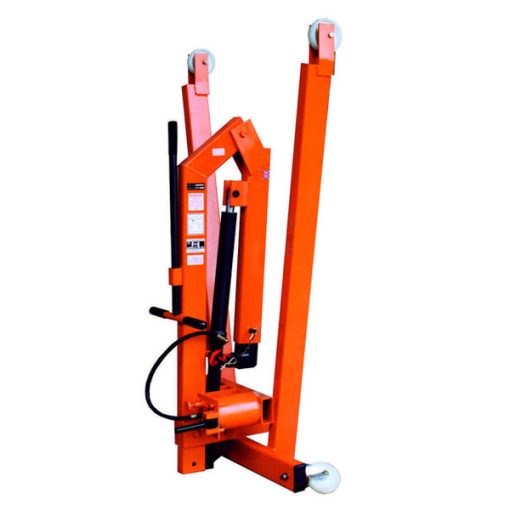

1000kg Folding Workshop Crane The 1000kg folding workshop crane is a space saving fold-away crane ideal for use in factories and industrial workshops. The crane folds down into a flat, compact free standing unit to save space when not in use or for transportation. Robust construction Manufactured from hollow steel box section for combined strength and lightness Tested to 25% overload Heavy duty double acting pump for fast action Fitted with overload safety valve Chrome plated piston on both ram & pump 3 position extending jib Heavy duty swivel hook fitted with safety latch Fitted with a D/A pump and separate hydraulic ram for longer seal life Technical Specifications: Capacity Position 1 1000 kg Capacity Position 2 750 kg Capacity Position 3 500 kg Min. Height Hook to Ground (1) 265 mm Max. Height Hook to Ground (2) 2235 mm Column Height (3) 1615 mm Overall Base Length (4) 1690 mm Max. Width Between Legs (5) 790 mm Max. Overall Width (6) 950 mm Height to Top of Legs (7) 160 mm Diameter of Wheels 125 mm Knock Down Height (8) 580 mm Weight 130 kg Not always in stock – lead time approx. 6 working weeks.
