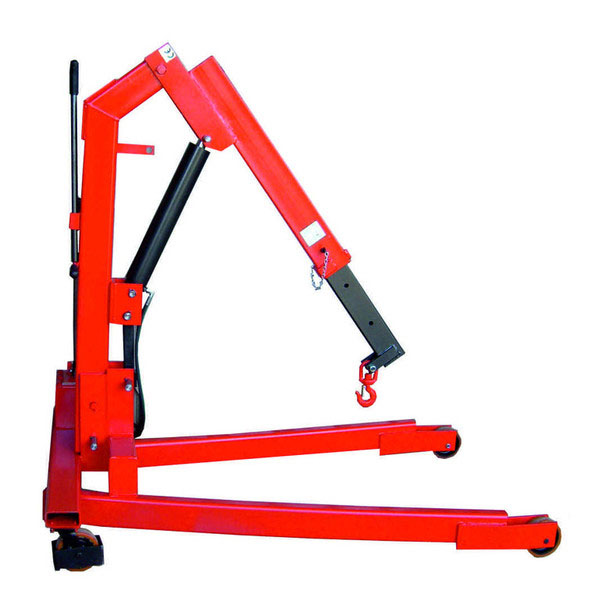

2000kg Folding Workshop Crane The 2000kg folding workshop crane is a space saving fold-away crane ideal for use in factories and industrial workshops. The crane folds down into a flat, compact free standing unit to save space when not in use or for transportation. Robust construction Manufactured from hollow steel box section for combined strength and lightness Tested to 25% overload Heavy duty double acting pump for fast action Fitted with overload safety valve Chrome plated piston on both ram & pump 3 position extending jib Heavy duty swivel hook fitted with safety latch Fitted with a D/A pump and separate hydraulic ram for longer seal life Technical Specifications: Capacity Position 1 2000 kg Capacity Position 2 1500 kg Capacity Position 3 1000 kg Min. Height Hook to Ground (1) 500 mm Max. Height Hook to Ground (2) 2720 mm Column Height (3) 1880 mm Overall Base Length (4) 1870 mm Max. Width Between Legs (5) 960 mm Max. Overall Width (6) 1170 mm Height to Top of Legs (7) 225 mm Diameter of Wheels 150 mm Knock Down Height (8) 660 mm Weight 210 kg Not always in stock – lead time approx. 6 working weeks.
