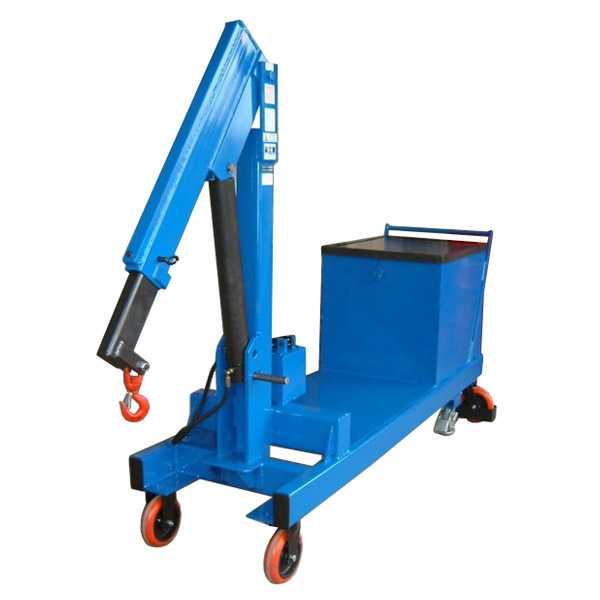

Counterbalanced Crane – 1500kg Capacity Counterbalance cranes are ideal for a large number of workshop requirements and give the operator complete freedom of movement at the front lifting area. Heavy-duty swivel hook and hook safety latch Hard chrome ground hydraulic ram and double acting pumps Hand-operated control valve Relief valve to prevent overload Three position telescopic jib Swivel castors at one end for on-the-spot turning Fully tested with 25% overload Manufactured from hollow steel box section for strength and lightness Fitted with ergonomic polyurethane tyred aluminium centred fabricated swivel castors with foot guards for on-the-spot turning and fixed castors on the front Designed with an empty steel box to hold counterweight OPTIONAL COUNTERWEIGHT CAN BE SUPPLIED Technical Specifications: Capacity: 1500kg Max. Lift Height: 2730 mm O/A Size (H x W x D): 1850 x 640 x 2500 mm
