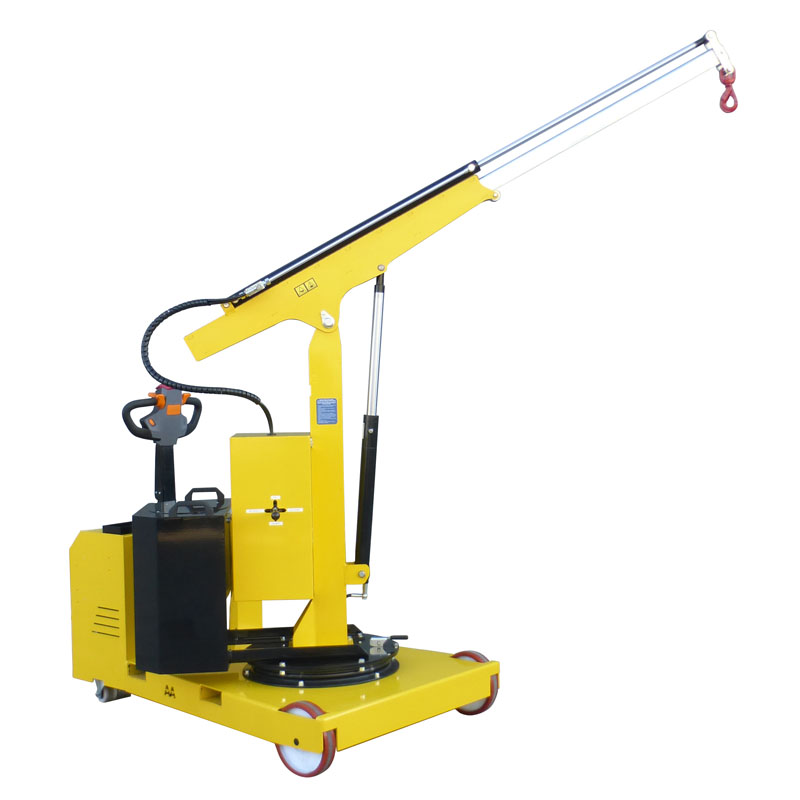

Electric Counterbalanced Swivel Crane 500kg – LiG500SB

Electric Counterbalanced Swivel Crane Features: Power drive/electric lifting and lowering 270° swivel Designed with built-in ballast weight The rotation is manual controlled and is facilitated by 2 handles Rotating jib arm in 8 locking positions Safe driving: Ergonomic tiller handle. Tiller arm safety switch disables operation in non-allowed positions Equipped with A 4-function distributor for: arm lifting; arm lowering; boom extension; boom retraction Dynamic Load Limiter prevents overloading in each position with mechanism that stops arm from extending Equipped with 2 fixed wheels and 2 pivoting stabilizing wheels Self-braking drive wheel for easy maneuverability in confined spaces Small footprint and wide steering angle for an easy working in tiny spaces Technical Specification: 2 x AGM batteries 12V 120Ah Visual warning LED beacon 24V intermittent buzzer sound when crane is in operation high frequency single phase built-in battery charger 220V, outlet tension 24V/12A and battery level gauge Remote RBC indicator for displaying the charging phase of the battery charger 2 position key switch; emergency button Anti-crush belly button: anti-crush button with automatic reversing switch to ensure the safety of the operator in every maneuvering operation Max. Capacity kg 500 Lifting Motor W 800 Traction Motor W 1200 Tank Capacity L 2 Weight kg 910 Standard Jib Arm Length from 430 mm to 1430 mm Capacity from 500kg to 200kg Extension Jib Length 1930 mm reach Capacity 100kg
