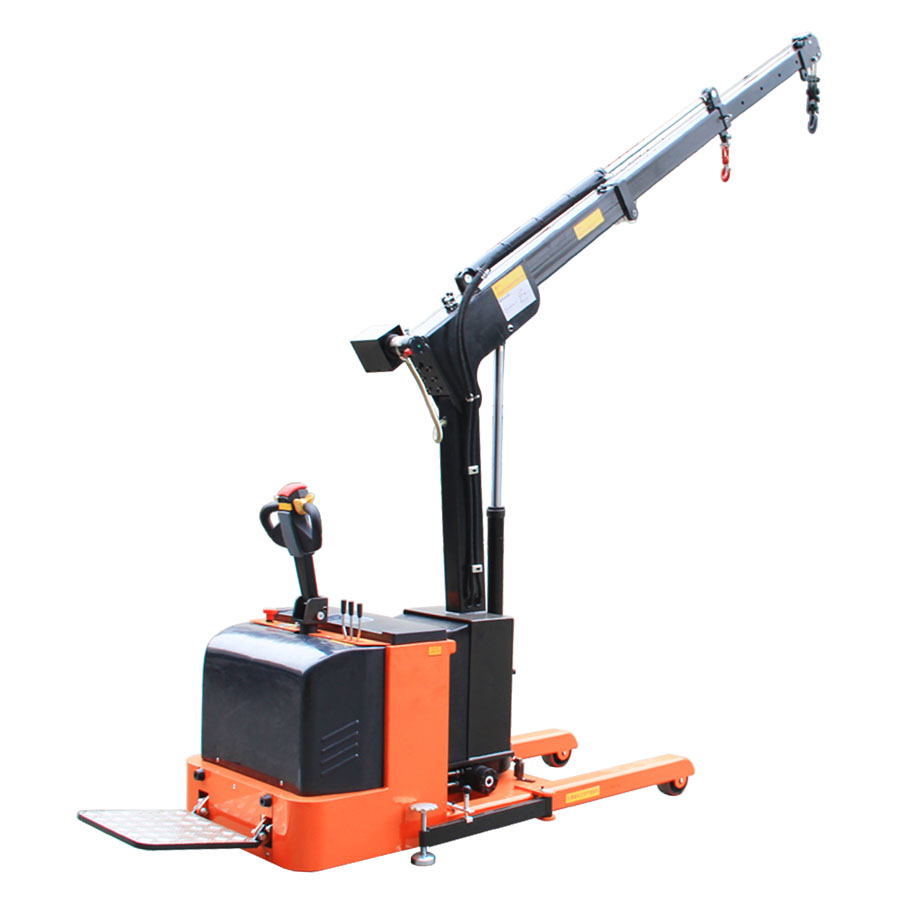

Powered Crane, 1000kg Capacity Electric Telescopic Fork Mounted Jibs 120° rotation Designed with 2 extending outspread legs (outriggers) for safe operation 3 position design, wide lifting range The hook can be controlled up and down by remote control High-power reversing switch, integrated hydraulic pump Integrated multi-function control handle Technical Specifications . A B C D E F Jib length（mm） 1425 2470 2670 2870 3070 3270 Rated capacity（kg） 1000 650 562.5 475 387.5 300 Jib rotation angle ±60° Max climbing ability 5° Turning radius（mm） 2150 Overall width of leg（mm） 852 Front wheel（mm） ∅ 150*50 Rear wheel（mm） ∅ 250*80 Brake Electromagnetic braking Power of driving motor 1.2 kw Power of lifting motor 2.2 kw Battery (V/Ah) 24/200（4PCS 100Ah battery） Charger (V/A) 24/30 Cable length（m） 10 Net weight（kg） 954 Closed dimension（mm） L 2200× W1100 ×H 155
