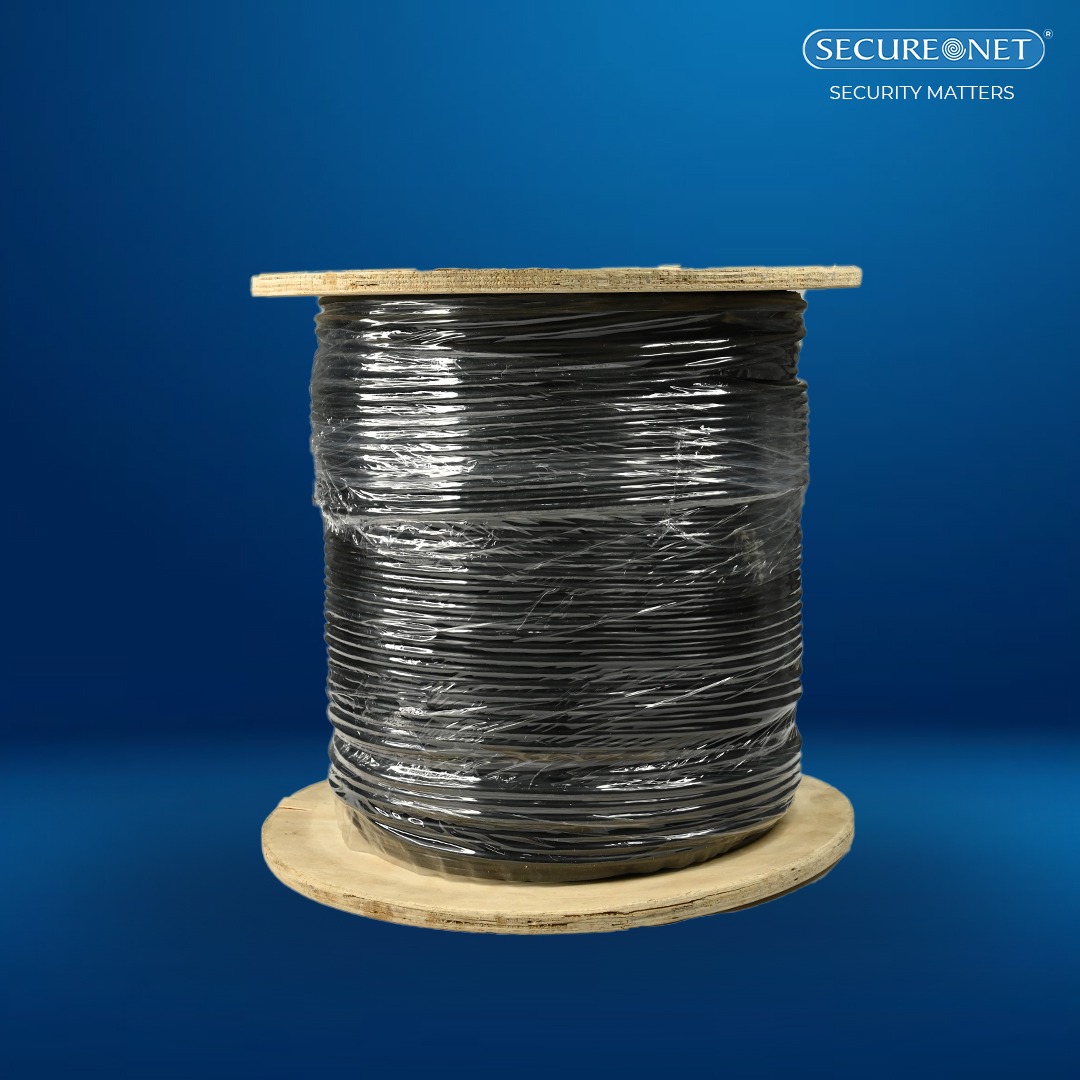

SEPECIFICATIONS 4 Pairs Unshielded Twist Pair (UTP) Cable Metal Solid Bare Copper Color Code BLACK Conductor Diameter 23AWG Insulation Diameter 0.970mm Nominal Insulation Material PE Jacket Material PVC Cable Diameter 6mm Nominal PE Central Cross Separator TECHNICAL DETAILS Mutual Capacitance 5.6nf/100m Nominal Characteristic Impedance 100 -15% Nominal Velocity of Propagation 69% Characteristic Impedance 100 15 Conductor Resistance <9.38/100m Mutual Capacitance <5.6nF/100 Resistance Unbalance 5% Max Capacitance Unbalance 330pF/100m Bending Radius < 4 x Cable Diameter at – 20° - 1°C Delay Skew <45nS Pulling Force 11.5KG Temperature Range -20°C to 70°C BULLET POINT 1- FIRE RETARDANT 2- EASY TO TRANSPORT WOODEN REAL 3- BEST QUALITY LED COATING FOR ALL WEATHER CONDITIONS. 4- DOUBLE JACKET COATING FOR EXTRA STRENTH. 5- UL CERTIFIED 6- REGISTER ON GEM 7- OUTDOOR CAT6 CABLE BECOZ SECURITY MATTERS 8- CAT6 CABLE BECOZ SECURITY MATTERS
