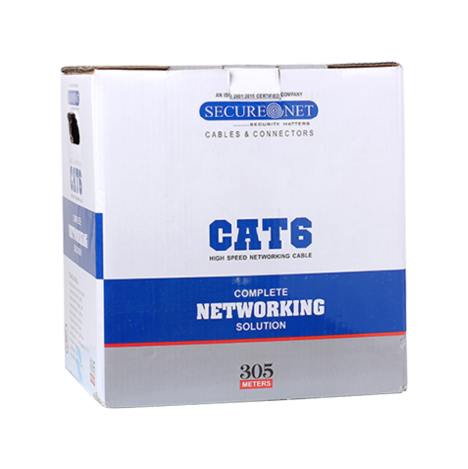

CAT6 UTP (305 METER)

Specification 4 pairs unshielded twist pair (utp) cable Tested on FLUKE network cable analyzer Conductor metal – solid bare copper Color code – grey Conductor diameter – 23awg Insulation diameter – 0.970mm nominal Insulation material – pe Jacket material – pvc Cable diameter 6mm – nominal PE central cross separator TECHNICAL DETAILS Mutual capacitance – 5.6nf/100m nominal Characteristic impedance – 100 -15% Nominal velocity of propagation – 69% Characteristic impedance – 100 15 Conductor resistance – <9.38/100m Mutual capacitance – <5.6nf/100 Resistance unbalance – 5% max Capacitance unbalance – 330pf/100m Bending radius – < 4 x cable diameter at – 20° - 1°c Delay skew – <45ns Pulling force – 11.5kg Temperature range – (-20°c to 70°c)
