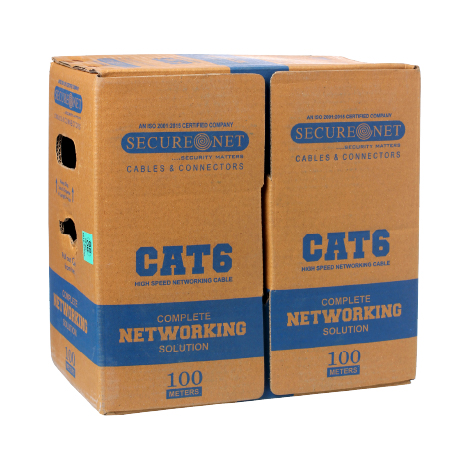

CAT6 (100 METER)

Specification 4 PAIRS UNSHIELDED TWIST PAIR (UTP) CABLE CONDUCTOR METAL – SOLID BARE COPPER COLOR CODE – GREY CONDUCTOR DIAMETER – 23AWG INSULATION DIAMETER – 0.970MM NOMINAL INSULATION MATERIAL – PE JACKET MATERIAL – PVC CABLE DIAMETER 6MM – NOMINAL PE CENTRAL CROSS SEPARATOR TECHNICAL DETAILS MUTUAL CAPACITANCE – 5.6NF/100M NOMINAL CHARACTERISTIC IMPEDANCE – 100 -15% NOMINAL VELOCITY OF PROPAGATION – 69% CHARACTERISTIC IMPEDANCE – 100 15 CONDUCTOR RESISTANCE – <9.38/100M MUTUAL CAPACITANCE – <5.6NF/100 RESISTANCE UNBALANCE – 5% MAX CAPACITANCE UNBALANCE – 330PF/100M BENDING RADIUS – < 4 X CABLE DIAMETER AT – 20° - 1°C DELAY SKEW – <45NS PULLING FORCE – 11.5KG TEMPERATURE RANGE – (-20°C TO 70°C)
