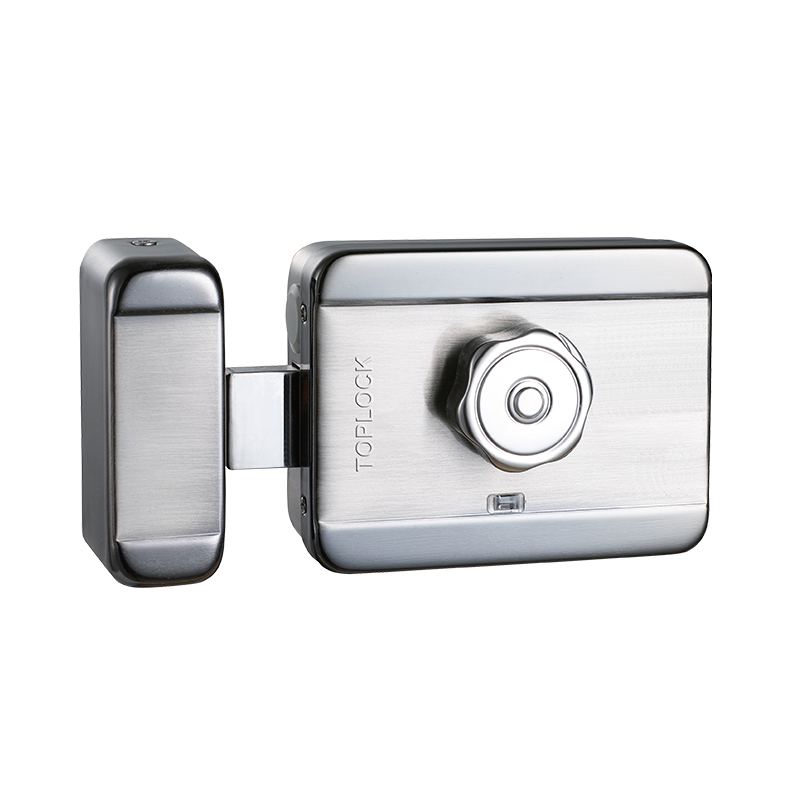

Description Product Paremeter MaterialIron FinishingNickel plating CylinderSingle cylinder ButtonN/a MotorStepping motor Locking wayBy magnet induction Unlock wayBy keys, turning knob, electric pulse Lock size131.5L * 100W * 43H (mm) VoltageDC12V Start current350mA Standby current25mA Operating temp-20℃ ~ 55℃ (-4℉ ~ 131℉) Operating humidity0 ~ 90% (Non condensing) Cycles test500, 000 operations Suitable forresidential buildings, offices, schools, factories, warehouses, etc., and can be used with electronic controlled anti-theft security door Dimensions Electric Motor Lock TL06-D Size Advantages Automatically electric motor locks by the magnetic sensor, high sensitivity sensor, and low noise lockThe length of the lock tongue＞20mm, meet GA/T73-94 5.1.6B standardStepping motor for our electric rim door lock, more stable and longer life (more than 500,000 cycles)Automatically detect the door status, automatic processing to open and close the doorIf don’t push the door after unlocking it, our electric motor locks automatically locked again in 6 seconds.Low energy consumption, environmentally friendly, green electric rim locks.Compatible with building system of entrance guard system, etcSuitable for wooden doors and metal doors, universal for left, right, inward, and outward opening doors.Widely used in intelligent communities, factories, warehouses, base stations, and building intercoms, intelligent access control systems.
