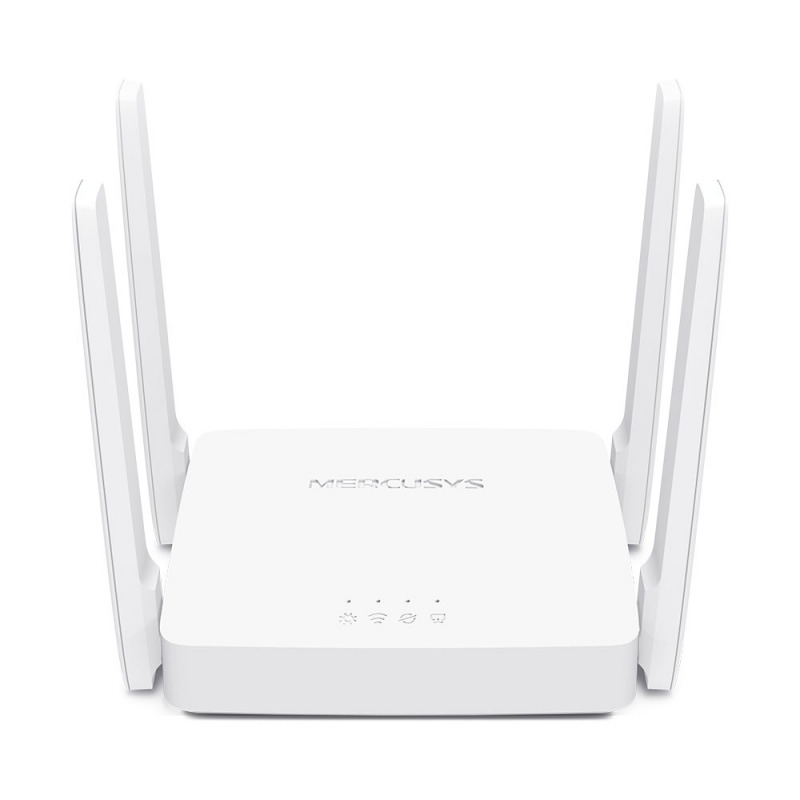

Description High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band) 4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home Easy Installation – Set up in minutes guided by the MERCUSYS app or an intuitive web UI Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use Multi-Mode — Access Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios IPTV and IPv6 Supported colour White Hardware Features Dimensions 4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm) Interfaces 1× 10/100 Mbps WAN Port2× 10/100 Mbps LAN Ports Button Reset/WPS Button External Power Supply 9V/0.85A Antenna Type 4× 5 dBi Fixed Omni-Directional Antennas Wireless Features Wireless Standards IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4 GHz, 5 GHz WiFi Speeds Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz Reception Sensitivity 11g 6Mbps: -96dBm11g 54Mbps: -78dBm11n HT40 MCS7: -74dBm11n HT20 MCS7: -71dBm11a 6Mbps: -97dBm11a 54Mbps: -79dBm11ac VHT20 MCS8: -74dBm11ac VHT40 MCS9: -70dBm11ac VHT80 MCS9: -65dBm Transmission Power 2.4 GHz < 20dBm (EIRP)5 GHz < 23dBm (EIRP) Wireless Security WEPWPA / WPA2-PersonalWPA2 / WPA3-Personal Wireless Functions Enable/Disable Wireless Radio, WMM Software Features Operation Mode Router Mode, Access Point Mode, Range Extender Mode WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management Access Control, Local Management, Remote Management NAT Forwarding Port Forwarding, Port Triggering, UPnP, DMZ Firewall Security SPI Firewall, IP and MAC Address Binding Guest Network 2.4 GHz Guest Network, 5 GHz Guest Network DHCP Server, DHCP Client List In The Box AC1200 Wireless Dual Band Router AC10Power AdapterQuick Installation GuideRJ45 Ethernet Cable
