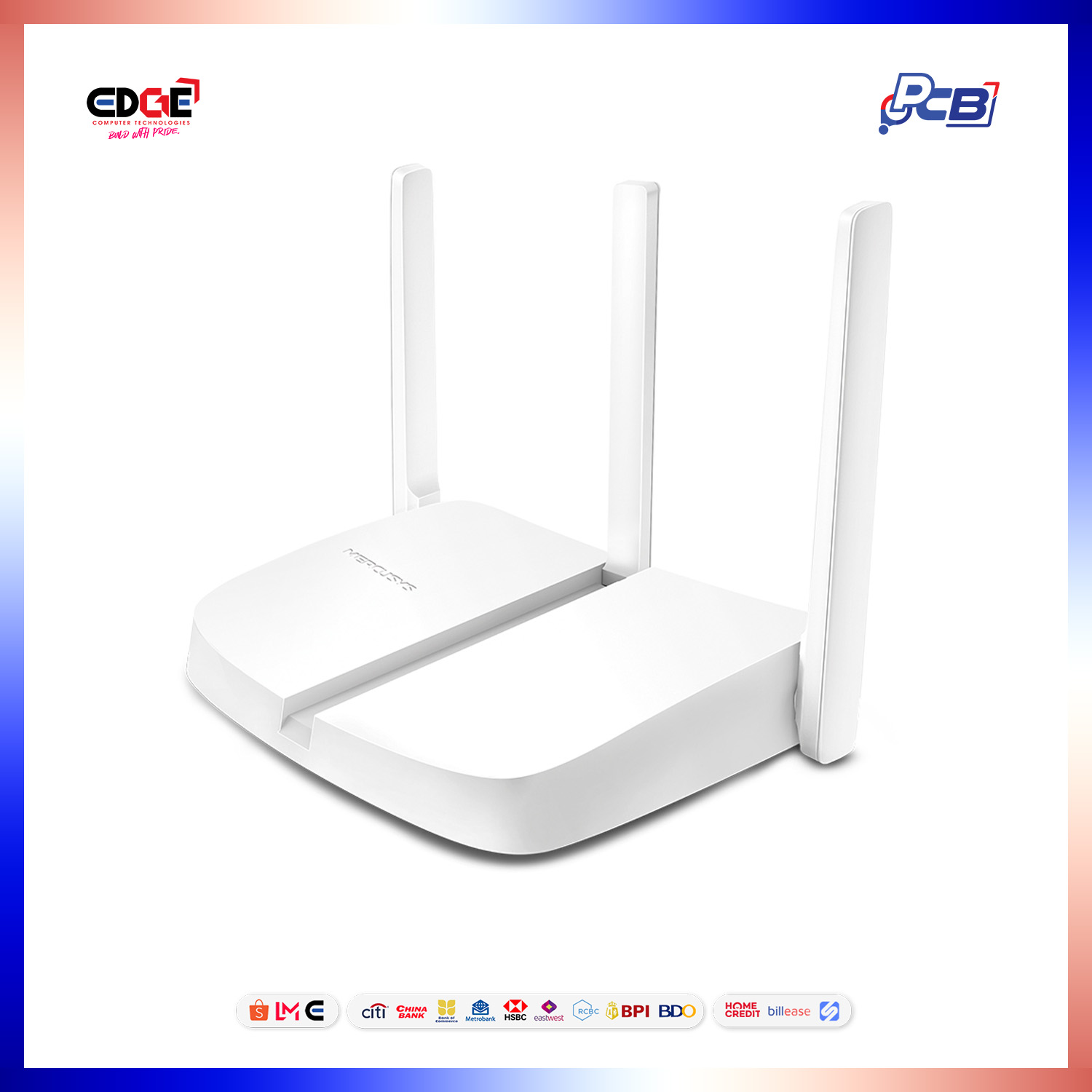

Description Wireless Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4 – 2.4835GHz WiFi Speeds 11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) Reception Sensitivity 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -77dBm@10% PER 54M: -76dBm@10% PER 11M: -90dBm@8% PER 6M: -92dBm@10% PER 1M: -97dBm@8% PER Transmission Power <20dBm Wireless Security WPA-PSK/WPA2-PSK Wireless Functions WDS bridge Software WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management Parental Control Access control Local management Remote management DHCP Server Port Forwarding Virtual server, UPnP, DMZ Dynamic DNS DynDNS、NO-IP Firewall Security IP and MAC address binding Protocols IPv4, IPV6 Guest Network 2.4GHz guest network Hardware Dimensions 114 x 94 x 26 mm Interfaces 2 10/100Mbps LAN ports 1 10/100Mbps WAN port Button Reset/WPS button External Power Supply 5VDC/0.6A Antenna Type 2 x 5dBi fixed omni directional antennas Others Certifications CE, ROHS Package Contents 300Mbps Wireless N Router MW301R Power adapter Quick installation guide Ehternet cable Environment Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing
