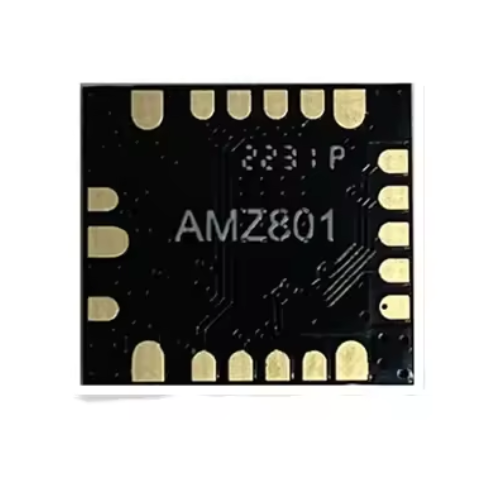

Z-Wave Module Pad with Pin Compatibility for Smart Homes Multiuse Module – GAOTek
$56.83
$92.63
Description Features Z-Wave 800 Series compatibility Low-cost solution Fully integrated module Suitable for smart home devices Technical Specifications Processor High Performance 32-bit 78 MHz ARM Cortex M33 with DSP instruction and floating-point unit Flash Memory Up to 512 kB RAM Up to 64 kB Radio Operation Sub-GHz TX Power Up to 20 dBm RX Current (868 MHz, 9.6 kbps FSK) 4.0 mA RX Current (868 MHz, 100 kbps GFSK) 4.0 mA RX Current (915 MHz, 9.6 kbps FSK) 4.0 mA RX Current (915 MHz, 100 kbps GFSK) 4.0 mA TX Current (915 MHz, 14 dBm) 25.0 mA TX Current (915 MHz, 0 dBm) 9.8 mA Active Mode (EM0) Current 26 μA/MHz at 39.0 MHz EM2 Deep Sleep Current (64 kB RAM) 1.5 μA EM2 Deep Sleep Current (16 kB RAM) 1.2 μA Receiver Sensitivity (250 kbps O-QPSK DSSS) -104.5 dBm Receiver Sensitivity (1 Mbit/s GFSK) -97.5 dBm Receiver Sensitivity (2 Mbit/s GFSK) -94.4 dBm Receiver Sensitivity (125 kbps GFSK) -104.9 dBm Protocol Support Z-Wave, Z-Wave LR, Proprietary
