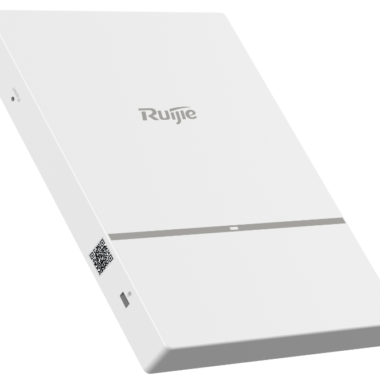

Model RG-AP820-L(V2) Hardware specifications Radio Dual-radio dual-band： Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2×2 MIMO Protocol Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac Operating Bands 802.11b/g/n/ax ：2.4G ~ 2.483GHz 802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries) Spatial Streams Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz Max Throughput Maximum throughput (5G 5G mode) per AP: 2.4Gbps Radio1：5G low band 1.2Gbps Radio2：5G high band 1.2Gbps 2.4G 5G operation mode, maximum throughput per AP: 1.775Gbps Radio1：2.4G 0.574Gbps Radio2：5G 1.2Gbps Modulation OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and [email protected]/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) Receiver Sensitivity 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） 11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11） Antenna Integrated antenna design Antenna Gain 2.4G: 3dBi 5G: 3dBi Service Ports 1 10/100/1000M Ethernet ports, PoE In Management Port 1 console port Reset Button Support Anti-theft Lock Support LED Indicator 1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) Transmit Power ≤100mw（20dBm） (vary depending on different countries) Adjustable Power 1dBm Power Supply Local power supply (DC 48V/1A) （DC Power adapters should be purchased from third-party vendors separately if needed） PoE (802.3af) – full spectrum operation Power Consumption ＜12.95W Physical Specifications Temperature Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C Humidity Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) Installation Mode Ceiling/wall-mountable Dimensions (W x D x H) 153mm ×193mm x26mm（Height of the AP only, excluding the mount kit） Weight ≤0.5kg (include mount kit) IP Rating IP41 MTBF 250,000 hours Certifications and Compliance Wi-Fi Alliance · Wi-Fi CERTIFIED™ a, b, g, n, ac · Wi-Fi CERTIFIED 6™ · WPA3™-Enterprise, Personal · Wi-Fi Enhanced Open™ · Wi-Fi Agile Multiband™ · WMM® Safety Standard GB4943, EN/IEC 62368-1 EMC Standard GB9254, EN301 489 Radio Standard SRRC, EN300 328, EN301 893 Software Specifications WLAN Maximum clients per AP 1024 BSSID capacity Up to 32 SSID hiding Support 5G Priority (Band Steering) Support Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support Remote Intelligent Perception Technology (RIPT) Support Intelligent device recognition technology Support Intelligent load balancing based on the number of users or traffic Support STA control SSID/radio-based Bandwidth control STA/SSID/AP-based bandwidth control Data encryption WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits） PSK and web authentication Support PPSK authentication (For Employee) Support (require wireless controller) 802.1x authentication Support PEAP authentication Support Data frame filtering Whitelist, static/dynamic blacklist User isolation Support Rogue AP detection and countermeasure Support Dynamic ACL assignment Support RADIUS Support CPU Protection Policy (CPP) Support Network Foundation Protection Policy (NFPP) Support IP IPv4 and IPv6 address Support Multicast routing Multicast to unicast conversion DHCP service DHCP Snooping, Option 82, Server, Client Management and Maintenance Supported wireless LAN controllers Ruijie WS Series Wireless Controller Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) Management protocol Telnet, SSH, TFTP, Web Wireless Intelligent AI Optimization Service (WIS) Support SNMP SNMPV1,V2c,V3 LLDP LLDP, LLDP-MED, LLDP-POE Syslog / Debug Support FAT/FIT/MACC mode switching Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management Facebook Comments Box
