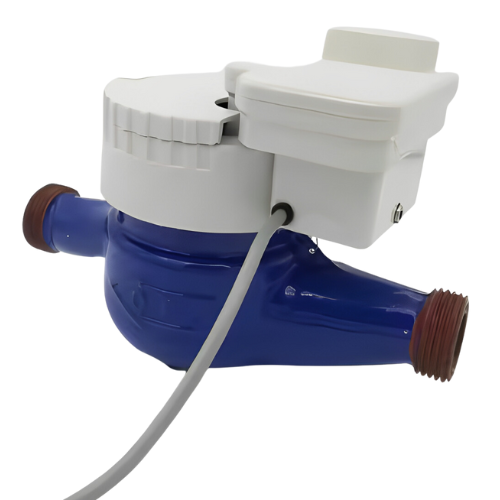

AMR IP68 Waterproof Wired Module for Accurate Water Metering – GAOTek

Description Features Multi-jet water meter Upstream leakage detection Long battery life Multiple communication interfaces IP65/IP68 protection Horizontal installation Reverse flow detection Wide temperature range ISO4064 compliance Customizable reading cycle   Technical Specifications Type Multi-jet meters Max. Permissible Working Pressure, MPa 1.0 Mpa Detection Alert Upstream, leakage Power Supply Battery DC 3.6V, lithium battery 10 1 years lifetime Communication Interface IrDA, Pulse, M-Bus, wM-Bus, LoRa, NB-Iot Protection Class IP65/IP68 Type De Water Meter Dry type Communication Lora/Mbus Standard ISO4064 Nominal Diameter, mm DN15-40 DN50-500 Connection Threaded joint flanged joint Class of Temp T30, T70, T90 Pressure Loss at Q3, kPa P<63Kpa Max.Permissible Working Pressure, MPa 1.0Mpa Max Reading 99999 m³ Installation Direction Horizontal Detection Alert Reverse flow Date Storage 18 months Static Consumption <20µA Communication Interface IrDA, M-Bus, LoRa, Environmental Class E1, M1, B Ambient Temp 41 °F to 131 °F (5 ℃ to 55 ℃) Storage Temp 4 °F to 140 °F (-20 ℃ to 60 ℃) Meter Standard ISO4064, OIML R49, EN14154 Communication Standard EN13757, OMS Distance 500 m (M-Bus)10000 m (LoRa etc.) Band 868MHz,470MHz and other ISM band Reading Cycle 1 time/1 hour (Customizable)
