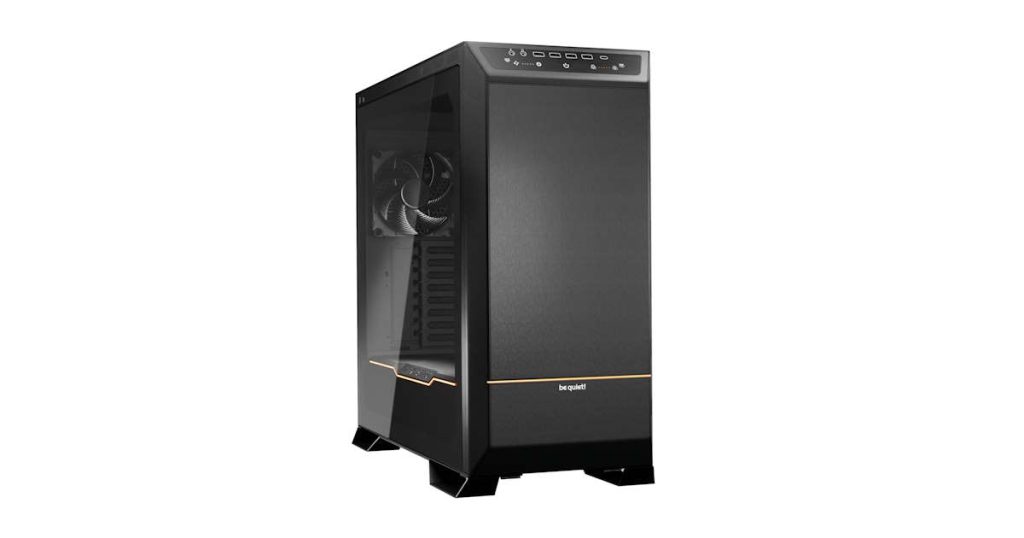

Description General data Model Dark Base Pro 901 – BGW50 Color option Black Motherboard compatibility E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX Case size excl. stands (L x W x H), (mm) 604 x 254 x 539 Case size incl. stands (L x W x H), (mm) 604 x 275 x 569 Volume (l) 82.69 PSU form factor ATX PS/2 Net weight (kg) 17.8 Expansion slots 8 Infographics Pre-installed fans Fan at top – Fan at front 2x Silent Wings 4 140mm PWM Fan at side – Fan at rear 1x Silent Wings 4 140mm PWM Fan at bottom – Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 Fan speed at 100% PWM / 12V (rpm) 1900 Airflow at 100% PWM / 12V (CFM / m3/h) 78.4 / 133.2 Air Pressure at 100% PWM / 12V (mm H2O) 2.36 Noise level at 100% PWM / 12V (dB(A)) 29.3 Voltage range (V DC) 12 Input power (W) 4.8 Input current (A) 0.4 Connector 4-pin PWM Lifespan (h / 25°C) 300,000 Fan controller 5-step fan controller with 2x PWM Hubs Maximum fan installation Maximum fans 11 Top (mm) 3x 140 / 3x 120 Front (mm) 3x 140 / 3x 120 Side (mm) 3x 120 Rear (mm) 1x 140 / 1x 120 Bottom (mm) 1x 140 / 1x 120 PSU shroud – Optional radiator installation Top (mm) 120 / 240 / 360 Front (mm) 120 / 140 / 240 / 280 / 360 / 420 Side (mm) 120 / 240 / 360 Rear (mm) 120 / 140 Bottom (mm) – PSU compatibility Maximum dimensions excl. bottom fan (mm) 325 Maximum dimensions incl. bottom fan (mm) 325 Graphics card HDD cage (in height of graphics card) installed (mm) 350 HDD cage (in height of graphics card) removed (mm) 495 Maximum PCIe slots with vertical graphics card (pcs.) 8 Drive bay capacity 5.25 bays (pcs.) 1 3.5 slots (scope of delivery) 2 3.5 slots (max.) 7 2.5 slots (scope of delivery) 6 2.5 slots (max.) 16 Cooling Max.construction height of CPU cooler unit (mm) 190 Airflow channel – Lighting LED illumination ✓ LEDs (pcs.) 24 LED type ARGB – 5V LEDs synchronizable with controller/motherboard ✓ I/O Panel USB 3.2 Gen. 2 Type C 1 USB 3.2 Type A 4 USB 2.0 – HD Audio I/O Mic Audio Qi charger / Quick Charging Option (W) 15 Insulation and damping Top panel insulation mats ✓ Front panel insulation mats ✓ Side panel insulation mats ✓ Anti-vibration decoupled HDD ✓ Anti-vibration decoupled fan ✓ Anti-vibration decoupled PSU ✓ Anti-vibration decoupled motherboard-tray ✓ Scope of delivery Screw set (Drives/Motherboard) ✓ Additional standoffs (pcs.) 3 (for E-ATX) SSD bracket for PSU shroud – LED strips (pcs.) 0 Cable ties (pcs.) 12 Screw box ✓ VGA holder ✓ VGA holder for inverted layout ✓ Mesh Front Panel ✓ ODD Bracket ✓ Fan / Radiator bracket for multi mounting panel ✓ Removeable dust filters Top – Front 1 Side – Bottom 1 Material Top cover Aluminum Front panel Aluminum Side panel Steel Side panel window Tempered glass Stands Steel Safety certification Approvals CE, UKCA Environmental directives RoHS ✓ Reach ✓ WEEE ✓ Triman ✓ Service Warranty (Years) 3 International hotline / free of charge ✓ / DE, FR, US Logistics data and RRP Article number BGW50 EAN code 4260052190142 Dimensions, package (L x W x H), (mm) 633 x 357 x 684 Gross weight, package (kg) 20.9 Pieces per packaging unit 1 RRP (€) 339.90
