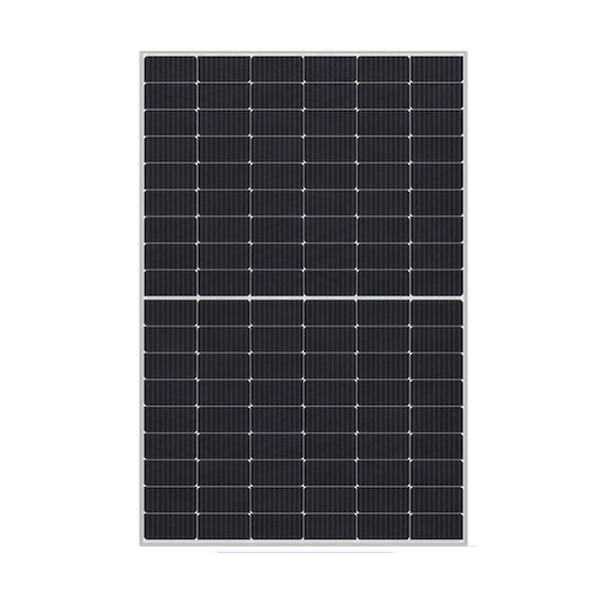

Description The Canadian Solar 545W Solar Panels is an advanced monocrystalline PERC panel designed to deliver exceptional performance and reliability. Crafted with cutting-edge technology being some of the best solar panels, are ideal for both residential and commercial solar applications. Here’s a detailed overview of its features: Key Features: High Power Output: STC Power Rating: 545W PTC Power Rating: 517.11W STC Power per unit of area: 212.6W/m2 (19.7W/ft2) Efficiency and Tolerances: Peak Efficiency: 21.26% Power Tolerances: 0%/ 10% Cell Configuration: Number of Cells: 144 Type: Mono PERC Voltage and Current: Imp: 13.14A Vmp: 41.5V Isc: 13.95A Voc: 49.4V Temperature Performance: NOCT: 41°C Temp. Coefficient of Isc: 0.05%/K Temp. Coefficient of Power: -0.34%/K Temp. Coefficient of Voltage: -0.128V/K Mechanical Characteristics: Output Terminal Type: Multicontact Connector Type 4 Output Cable Wire Gauge: 12 AWG Output Cable Wire Type: PV Wire Frame Color: Clear Backsheet Color: White Dimensions: 2,261mm (L) x 1,134mm (W) x 35mm (D) Weight: 27.8kg Installation Method: Rack-Mounted Warranty and Certifications: 80% Power Output Warranty Period: 25 years 90% Power Output Warranty Period: 10 years Workmanship Warranty Period: 12 years UL Fire Classification: Type 1 Compliances: UL 1703, IEC 61215, IEC 61730, CEC Specifications: STC Power Rating: 545W PTC Power Rating: 517.11W Peak Efficiency: 21.26% Number of Cells: 144 Imp: 13.14A Vmp: 41.5V Isc: 13.95A Voc: 49.4V NOCT: 41°C Series Fuse Rating: 25A Maximum System Voltage: 1500V Output Cable Wire Gauge: 12 AWG Dimensions: 2,261mm (L) x 1,134mm (W) x 35mm (D) Weight: 27.8kg Warranty: 25-year power output, 10-year product, 12-year workmanship
